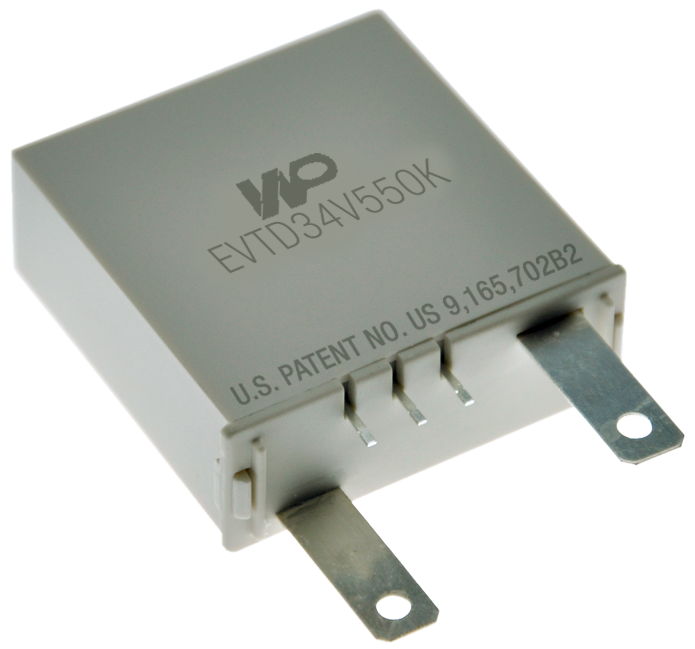

EVTD Technology (Thermally Protected Varistors)
|
|
Features
- High energy handling capability
- Wide voltage range available: 50VAC – 550VAC
- Multiple diagnostic options (micro switch locations both on top & bottom, on top only or on bottom only)
- Industry standard footprint
- UL1449 and CUL 3rd Edition recognized File #E321567*. All values presently recognized except EVTD34V300K which is pending.
- RoHS compliant
- Exceeds industry standard operating and storage temperatures for this type of device. Rated at -40ºC to +85º
- Patent Pending
*NOTE: Recognized and Approved to UL1449 as a 4 surge protective device component assembly for type 2 applications, and not listed as a Surge Protective Device (this is pending).
EVTD's are intended, in conjunction with appropriate enclosure design, to help facilitate TVSS module compliance to UL1449. Under extreme abnormal over-voltage conditions, some units will exhibit substantial heating, arcing and venting prior to opening. Modules should be designed to contain this possibility.
|
Electrical Characteristics
|
Part
Number
|
Maximum Continuous
Rated Voltage
|
Varistor Voltage
@1.0 mA (DC)
|
Maximum Clamping
Voltage
|
Maximum Peak
Current
(8/20μs KA)
|
Maximum
Energy
|
|
AC RMS
Volts
|
DC
Volts
|
Min
Volts
|
Nominal
|
Max
Volts
|
VC
(Volts)
|
IP
(Amps)
|
15 pulses*
|
1 pulse
|
10/1000µs
(joule)
|
|
EVTD34V50K
|
50
|
65
|
74
|
82
|
90
|
135
|
300
|
20
|
45
|
156
|
|
EVTD34V60K
|
60
|
85
|
90
|
100
|
110
|
165
|
300
|
20
|
45
|
195
|
|
EVTD34V75K
|
75
|
100
|
108
|
120
|
132
|
200
|
300
|
20
|
45
|
235
|
|
EVTD34V150K
|
150
|
200
|
222
|
246
|
270
|
395
|
300
|
20
|
50
|
480
|
|
EVTD34V180K
|
180
|
230
|
256
|
283
|
310
|
470
|
300
|
20
|
50
|
540
|
|
EVTD34V250K
|
250
|
320
|
371
|
410
|
449
|
650
|
300
|
20
|
50
|
830
|
|
EVTD34V275K
|
275
|
350
|
410
|
453
|
496
|
710
|
300
|
20
|
50
|
920
|
|
EVTD34V300K
|
300
|
385
|
423
|
471
|
517
|
775
|
300
|
20
|
50
|
1000
|
|
EVTD34V320K
|
320
|
415
|
459
|
510
|
561
|
845
|
300
|
20
|
50
|
1060
|
|
EVTD34V385K
|
385
|
505
|
558
|
620
|
682
|
1025
|
300
|
20
|
50
|
1250
|
|
EVTD34V420K
|
420
|
560
|
612
|
680
|
748
|
1120
|
300
|
20
|
50
|
1250
|
|
EVTD34V460K
|
460
|
615
|
675
|
750
|
825
|
1240
|
300
|
20
|
50
|
1280
|
|
EVTD34V510K
|
510
|
670
|
738
|
820
|
902
|
1355
|
300
|
20
|
50
|
1395
|
|
EVTD34V550K
|
550
|
745
|
819
|
910
|
1001
|
1500
|
300
|
20
|
50
|
1475
|
Dimensions
(mm)
|
L
|
43.9
|
|
W
|
42.8
|
|
W1
|
41
|
|
T
|
16
|
|
F
|
25.5
|
|
L1
|
17.8
|
Note: Tolerance for all
dimensions are +/- 1mm unless otherwise noted. |
 |
*NOTE: Micro switches are intended for monitoring of the internal thermal disconnect. Micro switches are rated at 125VAC 1A max.
Part Number System
-
-
-
 |
Series
EVTD = EV Series Varistor TD Thermal Disconnect
|
 |
Disk Size
34 = 34mm
|
 |
Type
V = High Current EV Varistor Series
|
 |
AC RMS Voltage Rating
50 = 50VAC
|
 |
Tolerance
K = ±10%
|
 |
Microswitch Location Option
Nil = Top and Bottom
A = Top only
B = Bottom only |
|
 |
-
-
|
