WRG Industrial Relays
World Products Inc. is the Exclusive Agent in North America for WRG (Wangrong Electronics (Shenzhen) Co., Ltd.).
RD Series Product Change Notification-050316 (pdf)
WRG RELAYS FOR SOLAR INDUSTRY MARKET |
||||||||||
SERIES |
DATA SHEET |
Dimensions: LxWXH |
Contact Arrangement |
Coil Voltage |
Coil Power |
Contact Rating |
Electrical Life |
Mechanical Life |
Dialectric Strength |
|
Between Contact |
Between Contact |
|||||||||
RA SERIES |
27x32x19.9 |
1Form A |
08: 12V |
D type: 1400mW |
30A/250VAC |
1X105 times |
1X106 times |
2500VAC |
4000VAC |
|
RF SERIES |
30.1x23.3x15.7 |
1 Form A |
10: 12VDC |
D type: 1400mW |
25A/250VAC |
1X105 times |
1X106 times |
2500VAC |
4000VAC |
|
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Between Contacts | Between Contact and Coil | ||||||||||
| RA1 |  |
32.0×27.0×23.1 | 1 Form A/C | DC: 5~24V | D type: 1,000mW L type: 900mW |
A type: 30A 250VAC C type: N.O.20A 250VAC N.C.10A 250VAC |
1X105 times | 1X106 times | 1,500Vrms | 2,000Vrms |  |
| RA2 |  |
32.3×27.3×31.0 | 1 Form A/C | DC: 5~24V | D type: 1,000mW L type: 900mW |
A type: 30A 250VAC C type: N.O.20A 250VAC N.C.10A 250VAC |
1X105 times | 1X106 times | 1,500Vrms | 2,000Vrms |  |
| RA5 |  |
50.1×27.3×27.6 | 1 Form A/C | DC: 5~24V | D type: 1,000mW L type: 900mW |
A type: 30A 250VAC C type: N.O.20A 250VAC N.C.10A 250VAC |
1X105 times | 1X106 times | 1,500Vrms | 2,000Vrms |  |
RB-1P |
 |
28.9×12.6×19.2 | 1 Form A | DC: 5~24V | 400mW | 16A 277VAC 1/2HP 120VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
| 28.9×12.6×19.2 | 1 Form A | DC: 5~24V | 400mW | 16A 277VAC 1/2HP 120VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms | |
||
| 28.9×12.6×19.2 | 1 Form C | DC: 5~24V | 400mW | N.O.:16A 277VAC N.C.:8A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
||
| 28.9×12.6×19.2 | 1 Form C | DC: 5~24V | 400mW | N.O.:16A 277VAC N.C.:8A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
||
| 28.9×12.6×19.2 | 1 Form A | DC: 5~24V | 400mW | 16A 277VAC 1/2HP 120VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
||
| 28.9×12.6×19.2 | 1 Form C | DC: 5~24V | 400mW | N.O.:16A 277VAC N.C.:8A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
||
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Between Contacts | Between Contact and Coil | ||||||||||
RB-2P |
 |
28.9×12.6×19.2 | 1 Form C | DC: 5~24V | 400mW | N.O.:16A 277VAC N.C.:8A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
| 28.9×12.6×19.2 | 1 Form C | DC: 5~24V | 400mW | N.O.:16A 277VAC N.C.:8A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
||
RBF NEW |
 |
40.5×12.7×16.0 | 1 Form A | DC: 5~24V | 400mW | 1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
|
| 40.5×12.7×16.0 | 1 Form B | DC: 5~24V | 400mW | 1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms | ||||
| RC (Standard type) |
 |
20.4×7.0×18.6 | 1 Form A | DC: 5~24V | 200mW | 3A 250VAC 3A 30VDC 1/8HP 240VAC |
1X105 times | 1X106 times | 750Vrms | 4,000Vrms |  |
| 20.4×7.0×18.6 | 1 Form A | DC: 5~24V | 200mW | 5A 250VAC 5A 30VDC |
1X105 times | 1X106 times | 750Vrms | 4,000Vrms | |
||
| RC ( A Type) |
 |
20.4×7.0×18.6 | 1 Form A | DC: 5~24V | 200mW | 5A 250VAC 5A 30VDC 3A 250VAC 3A 30VDC 1/8HP 240VAC |
1X105 times | 1X106 times | 750Vrms | 4,000Vrms |  |

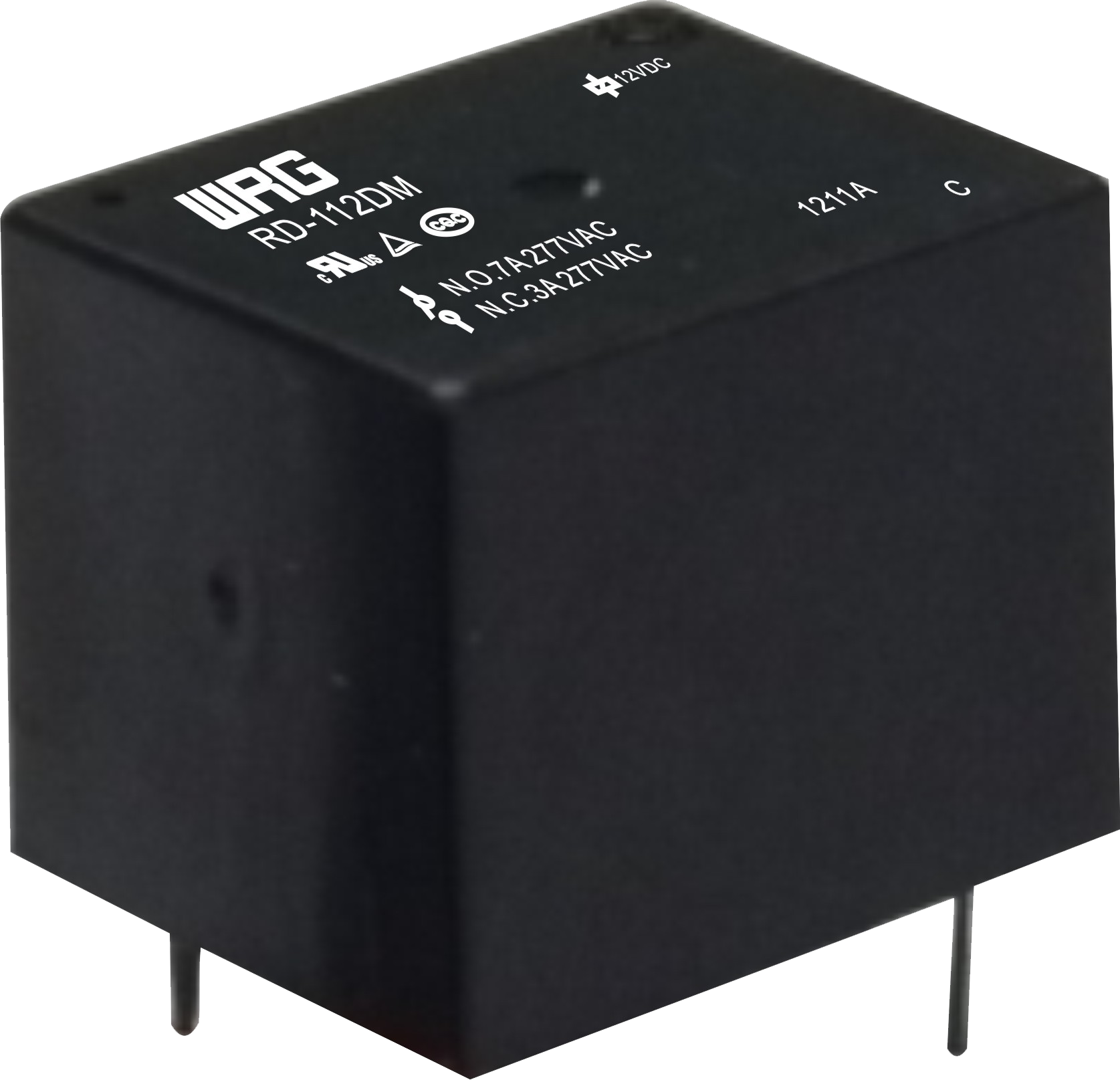

| RD (5 Pin) |
 |
19.0×15.5×20.0 | 1 Form A | DC: 5~24V | 360mW | A type 10A277VAC C type N.O.:7A277VAC N.O.:3A277VAC |
1X105 times | 1X106 times | 750Vrms | 1,500Vrms |  |
| RD (4 Pin) |
|
19.0×15.5×20.0 | 1 Form A | DC: 5~24V | 360mW | 10A277VAC | 1X105 times | 1X106 times | 750Vrms | 1,500Vrms |  |
| RD (C Type) |
|
19.0×15.5×20.0 | 1 Form A | DC: 5~24V | 360mW | C type N.O.:7A277VAC N.O.:3A277VAC |
1X105 times | 1X106 times | 750Vrms | 1,500Vrms |  |
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Between Contacts | Between Contact and Coil | ||||||||||

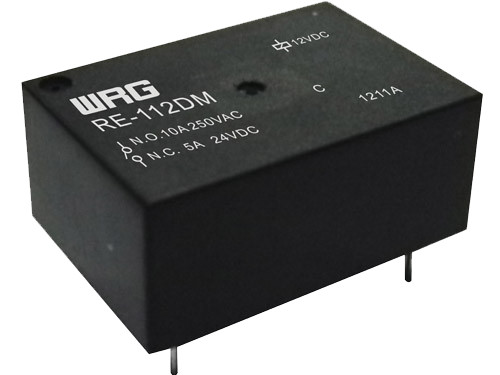

| RE (10A) |
 |
23.0×16.1×13.7 | 1 Form A | DC: 5~24V | 200mW | 10 A 250VAC 10 A 3VDC |
1X105 times | 1X106 times | 1,000Vrms | 2,000Vrms |  |
| RE (15A) |
|
23.0×16.1×13.7 | 1 Form A | DC: 5~24V | 200mW | 15 A 250VAC | 1X105 times | 1X106 times | 1,000Vrms | 2,000Vrms | |
| REF (10A) |
 |
24.5×23.6×17.0 | 1 Form A | DC: 5~24V | 200mW | 10 A 250VAC 10 A 3VDC |
1X105 times | 1X106 times | 1,000Vrms | 2,000Vrms |  |
| REF (15A) |
|
24.5×23.6×17.0 | 1 Form A | DC: 5~24V | 200mW | 15 A 250VAC | 1X105 times | 1X106 times | 1,000Vrms | 2,000Vrms | |

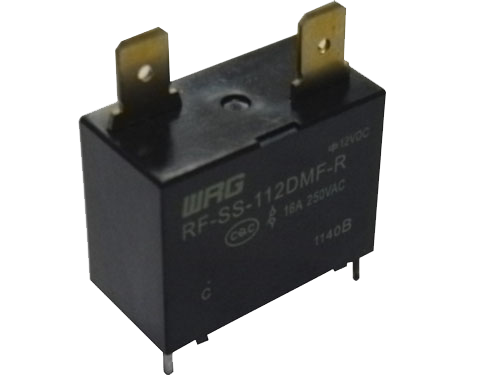

| RF (16A) |
 |
30.1×15.7×36.8 | 1 Form A | DC: 5~24V | 900mW | 16A 250VAC | 1X105 times | 1X106 times | 1,000Vrms | 4,500Vrms |  |
| RF (20A) |
 |
30.1×15.7×36.8 | 1 Form A | DC: 5~24V | 900mW | 20A 250VAC 2HP 240VAC |
1X105 times | 1X106 times | 1,000Vrms | 4,500Vrms | |
| RF (25A) |
|
30.1×15.7×36.8 | 1 Form A | DC: 5~24V | 900mW | 25A 250VAC | 1X105 times | 1X106 times | 1,000Vrms | 4,500Vrms | |
| RF (P Type) |
 |
30.1×15.7×26.8 | 1 Form A | DC: 5~24V | 900mW | 25A 250VAC 2HP 250VAC 20A 250VAC 16A 250VAC |
1X105 times | 1X106 times | 1,000Vrms | 4,500Vrms | |
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Between Contacts | Between Contact and Coil | ||||||||||
| RJ (5A) |
 |
18.2×10.2×19.6 | 1 Form A | DC: 5~24V | D: 450mw L: 200mw |
L: 5A 250VAC 5A 30VDC 1/4HP 240VAC L: 5A 250VAC 5A 30VDC 1/3HP 240VAC |
1X105 times | 1X106 times | 1,000Vrms | 4,000Vrms |  |
| RJ (10A) |
 |
18.2×10.2×19.6 | 1 Form A | DC: 5~24V | 450mw | 10A 250VAC 5A 30VDC 1/3HP 240VAC |
1X105 times | 1X106 times | 1,000Vrms | 4,000Vrms | |

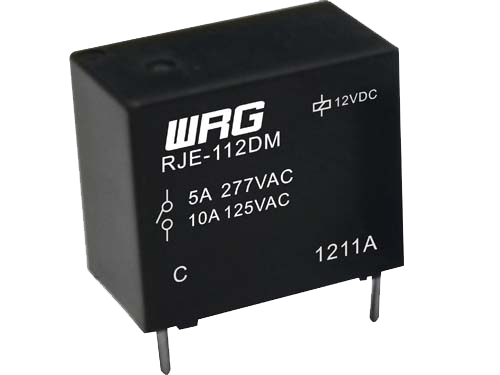

| RJE |  |
20×10×19 | 1 Form A/C | DC: 5~24V | D: 400mw L: 200mw |
A Type: 10A 125VAC 5A 277VAC 10A 30VDC C Type: N.O.: 5A 277VAC N.O.: 3A 277VAC |
1X105 times | 1X106 times | 750Vrms | 4,000Vrms |  |
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Between Contacts | Between Contact and Coil | ||||||||||
| RMI (1P) |
 |
29.2×12.8×24.5 | 1 Form A/C | DC: 5~24V | D: 720mw L: 540mw |
A Type: 10A 277VAC C Type: N.O.: 10A 277VAC N.C.: 5A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |

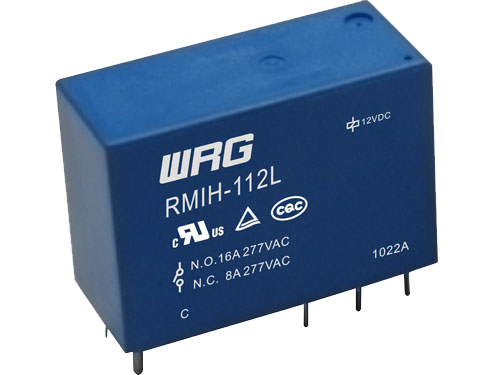

| RMIH |  |
29.2×12.8×24.5 | 1 Form A/C | DC: 5~24V | D: 720mw L: 540mw |
A Type: 16A 277VAC C Type: N.O.: 16A 277VAC N.C.: 8A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |

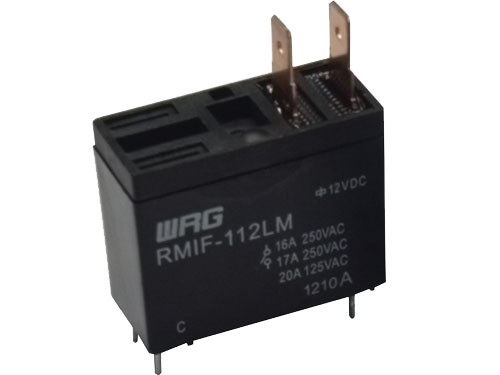

| RMIF |  |
29.0×12.6×38.1 | 1 Form A | DC: 5~24V | D: 720mw L: 540mw |
20 A 125VAC 17 A 277VAC 16 A 277VAC |
1X105 times | 1X106 times | 1,000Vrms | 5,000Vrms |  |
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Same Pole | Between Contact and Coil | ||||||||||
| RSA (0.5A) |
 |
12.6×7.6×10 | 1 Form C | DC:3~24V | D type: 200mW L type: 150mW |
0.5A 125VAC 1A 24VDC |
1X105 times | 1X107 times | 400Vrms | 1,000Vrms |  |
| RSB (1A) |
 |
21×10×11.9 | 2 Form A | DC:4.5~48V | D type: 510mW L type: 150/200mW |
1A 125VAC 2A 30VDC |
1X105 times | 1X107 times | 500Vrms | 1,000Vrms |  |
| RSC Standard type (3A) |
 |
15.5×10.6×12 | 1 Form C | DC:3~24V | D type: 360mW L type: 200mW |
3A 125VAC 3A 30VDC |
1X105 times | 1X107 times | 500Vrms | 1,000Vrms |  |
| RSC A type (3A) |
|
15.5×10.6×12 | 1 Form C | DC:3~24V | D type: 360mW L type: 200mW |
3A 125VAC 3A 30VDC |
1X105 times | 1X107 times | 500Vrms | 1,000Vrms |  |
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Between Contacts | Between Contact and Coil | ||||||||||
| RAA O type (40A) |
 |
22.9×18.4×17.9 | 1 Form A 1 Form C |
6V~24V | D type: 1600mW L type: 1200mW |
1 Form A: 1 Form C: |
1X105 times | 1X107 times | 1,000Vrms | 1,500Vrms |  |
| RAA Standard type (40A) |
 |
22.9×18.4×17.9 | 1 Form A 1 Form C |
6V~24V | D type: 1600mW L type: 1200mW |
1 Form A: 1 Form C: |
1X105 times | 1X107 times | 1,000Vrms | 1,500Vrms |  |
| RAC (20A) |
 |
22×16×21.4 | 1 Form A |
6V~24V | D type: 1500mW L type: 1200mW |
1 Form A: 1 Form C: |
1X105 times | 1X107 times | 500Vrms | 1,000Vrms |  |
| RAD (15A) |
 |
18.9×15.5×15.5 | 1 Form A 1 Form C |
6V~24V | 360mW | 15A 14VDC | 1X105 times | 1X107 times | 750Vrms | 1,500Vrms |  |
| RAE Standard type (20A) |
 |
15.6×12.2×14 | 1 Form A 1 Form C |
6V~24V | D type: 800mW L type: 600mW |
20A 14VDC | 1X105 times | 1X107 times | 500Vrms | 1,000Vrms |  |
| RAE T type (20A) |
 |
16.3×25.4×14 | 1 Form A 1 Form C |
6V~24V | D type: 800mW L type: 600mW |
20A 14VDC | 1X105 times | 1X107 times | 500Vrms | 500Vrms |  |
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Between Contacts | Between Contact and Coil | ||||||||||
| RAF O type (15A) |
 |
14.5×13×17.2 | 1A 1C 1U 1V 1W |
6V~24V | 1,100mW | 1A: 1C: 1U: 1V: 1W: |
1X105 times | 1X107 times | 750Vrms | 500Vrms |  |
| RAF (15A) |
 |
17.6×14.8×19.9 | 1A 1C 1U 1V 1W |
6V~24V | 1,100mW | 1A: 1C: 1U: 1V: 1W: |
1X105 times | 1X107 times | 750Vrms | 500Vrms | |
| RAF T type (15A) |
 |
29.6×17.8×19.7 | 1A 1C 1U 1V 1W |
6V~24V | 1,100mW | 1A: 1C: 1U: 1V: 1W: |
1X105 times | 1X107 times | 750Vrms | 500Vrms |  |
SERIES |
Appearance | Dimensions: LxWxH (mm) |
Contact Arrangement |
Coil Voltage | Coil Power | Contact Ratings |
Electrical Life |
Mechanical |
Dielectric Strength |
PCB Layout | |
| Between Contacts | Between Contact and Coil | ||||||||||
| RAH (80A) |
 |
28×28×25.4 | 1 Form A 1 Form C |
6V~24V | 2,000mW | 1 Form A: 1 Form C: |
1X105 times | 1X107 times | 500Vrms | 500Vrms |  |
| RAV40 |  |
67×35.3×47 | Double Break, Single |
12V,24V | 3,000mW | 40A 450VDC | 40A 7,000 times 30A 10,000 times |
2X105 times | 2,500Vrms | 2,500Vrms | |
| RAV400 |  |
63×57.5×91 | Double Break, Single |
12V,24V | 5,000mW | 400A 450VDC | 400A 2,000 times 200A 10,000 times |
3X105 times | 2,500Vrms | 2,500Vrms | |
