ESD Protection Diodes L02ESD5V0D5-4

Quad ESD Protection Diodes

  • Stand-Off Voltage - 5.25 Volts
  • Power Dissipation - 25 Watts

General Description

The L02ESD5V0D5-4 is a 4-bit voltage suppressor designed to protect components which are connected to data and transmission lines against Electro Static Discharge (ESD).

It clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients.

Features

  • 4 unidirectional ESD protections
  • Max. peak pulse power: Ppp = 25W at tp = 8/20 µs
  • Ultra low leakage current: IRM < 1µA @ 3V
  • ESD protection > 25KV per MIL-STD-883C, Method 3015-6: Class 3
  • EC 61000-4-2, level 4 (ESD), > 15KV (air); > 8KV (contact)
  • Low capacitance device

Application

  • Computers and peripherals
  • Communication system
  • Cellular handsets and accessories
  • Video equipment
  • Set top boxes

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)

  • Component in accordance to RoHs 2002/95/EC

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power (8/20µs Waveform)
PPPM
25
W
Operating Junction Temperature Range
TJ
-55 to + 125
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5.25
V
Reverse leakage current
IRM
VDRM = 3 V
—
1 µA
Breakdown voltage
VBR
IR = 1 mA
6.1
7.2
V
Diode capacitance
CJ
VR = 3 V , f = 1MHz
—
9.5
pF
Clamping Voltage
VCL
IPP = 2 A
—
13
V

SOT353

W02E5V0D5Dia
Dim.
Min.
Max.
A
0.80
1.10
B
0.15
0.30
C
0.10
0.18
D
1.80
2.20
E
1.15
1.35
F
0
0.1
G
0.80
1.00
H
1.80
2.40
I
0.65 typ.
Q1
0.1
0.4
All dimensions in millimeters

Marking & Orientation
W02E5V0D5Marking

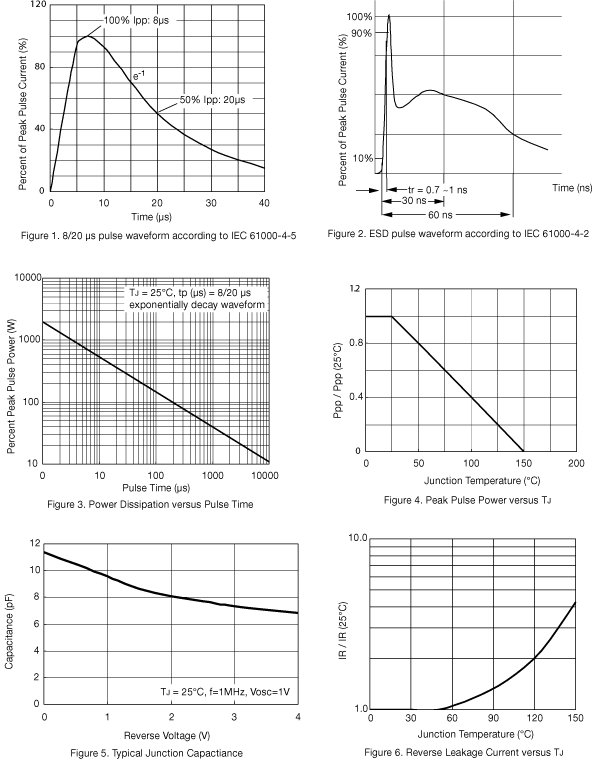

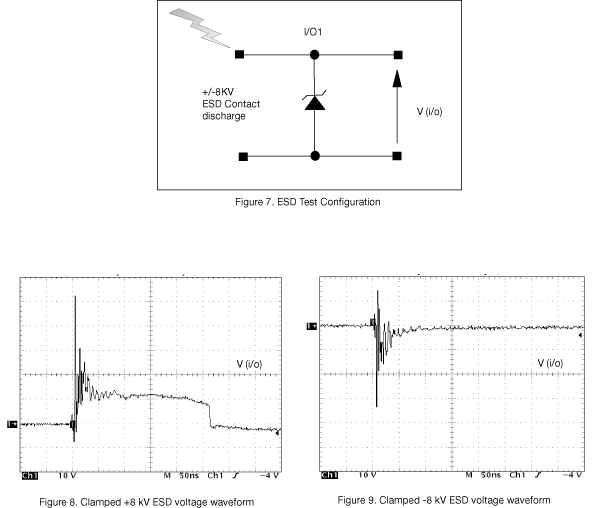

Rating and Characteristic Curves

W02E5V0D5Curves1

W02E5V0D5Curves2

© Specifications mentioned in this publication are subject to change without notice.
