ESD Protection Diodes L02ESD5V0D6-5

Uni-Directional ESD Protection Diode

  • Stand-Off Voltage - 5.0 Volts
  • Power Dissipation - 25 Watts

General Description

The L02ESD5V0D6-5 is a low capacitance 5-fold ESD protection diode array in SOT363 package.

Features

  • Uni-directional ESD protection of five lines
  • Bi-directional ESD protection of up four lines
  • Max. peak pulse power: Ppp = 25W at tp = 8/20 µs
  • Ultra low leakage current: IRM < 25nA @ 5V
  • ESD protection > 20 KV
  • IEC 61000-4-2, level 4 (ESD), > 15KV (air); > 8KV (contact)
  • IEC 61000-4-5 (surge); Ipp = 2.5A at tp = 8/20 µs.
  • Low clamping voltage; VCL < 12V at Ipp = 2.5A
  • Low capacitance device

Application

  • Computers and peripherals
  • Communication system
  • Cellular handsets and accessories
  • Audio and video equipment

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)
  • Component in accordance to RoHs 2002/95/EC
  • Weight: 0.007 ounces, 0.21 gram

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power (8/20µs Waveform) notes 1 and 2
PPPM
25
W
Operating Junction Temperature Range
TJ
-55 to + 150
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C
NOTE: 1. Non-repetitive current pulse 8/20 µs exponentially decaying waveform.
2. Measured from any of pins 1, 3, 4, 5 or 6 to pin 2.

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5.0
V
Reverse leakage current
IRM
VDRM = 5 V
—
25
nA
Breakdown voltage
VBR
IR = 1 mA
6.4
7.2
V
Diode capacitance
CJ
VR = 0 V, f = 1MHz
—
19
pF
Clamping voltage
VCL
IPP = 1A
—
10
V
Clamping voltage
VCL
IPP = 2.5A
—
12
V

SOT363

W02E5V0D6Dia
Dim.
Min.
Max.
A
0.80
1.10
B
1.80
2.20
C
1.15
1.35
D
1.30 (Typ.)
E
1.65 (Typ.)
F
2.00
2.20
G
0.20
0.30
All dimensions in millimeters

Pin Assignment
1
Cathode 1
2
Common Anode
3
Cathode 2
4
Cathode 3
5
Cathode 4
6
Cathode 5

Marking & Orientation
W02E5V0D6Marking

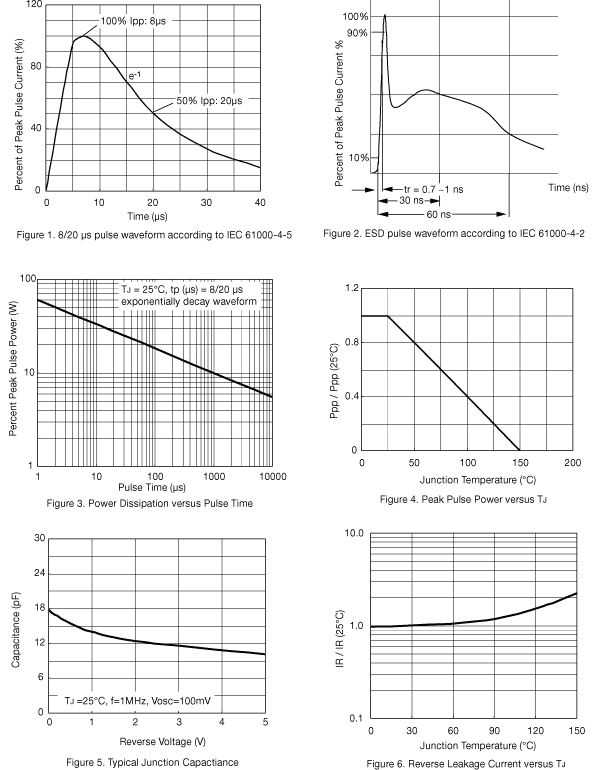

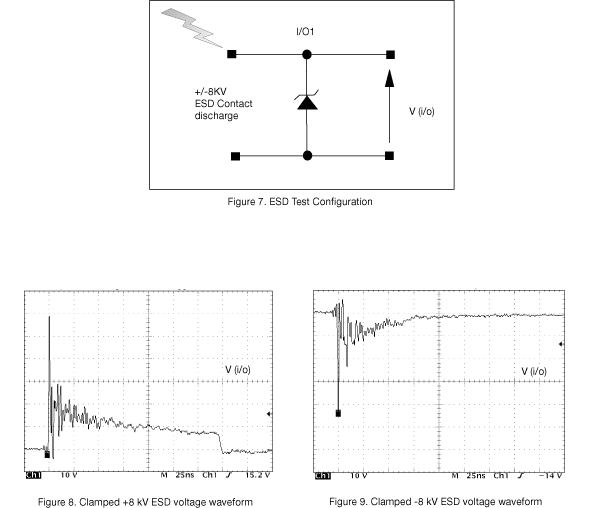

Rating and Characteristic Curves

W02E5V0D6Curves1

W02E5V0D6Curves2

© Specifications mentioned in this publication are subject to change without notice.
