ESD Protection Diodes W02E5V0F6-5

World Products, LLC, Electronic Component Solutions

ESD Protection Diodes L02ESD5V0F6-5

Uni-Directional ESD Protection Diode

Stand-Off Voltage - 5.0 Volts
Power Dissipation - 25 Watts

General Description

The L02ESD5V0F6-5 is a low capacitance 5-fold ESD array in the ultra small SOT666 plastic package designed to protect up to five transmission or data lines from the damage caused by Electrostatic Discharge (ESD).

Features

Uni-directional ESD protection of up to five lines
Bi-directional ESD protection of up to four lines
Max.peak pulse power: Ppp = 25W at tp = 8/20 µs
Ultra low leakage current: I_RM < 25nA @ 5V
ESD protection > 20 KV
IEC 61000-4-2, level 4 (ESD), > 15KV (air); > 8KV (contact)
IEC 61000-4-5 (surge); Ipp = 2.5A at tp = 8/20 µs
Low clamping voltage; V_CL < 12V at Ipp = 2.5A
Low capacitance device

Application

Computers and peripherals
Communication system
Cellular handsets and accessories
Audio & video equipment
Portable electronics

Mechanical Data

Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
Terminals: Lead Free Plating (Matte Tin Finish)
Component in accordance to RoHs 2002/95/EC
Weight: 0.007 ounces, 0.21 gram

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating	Symbol	Value	Unit
Peak Pulse Power (8/20µs Waveform) notes 1 and 2	P_PPM	25	W
Operating Junction Temperature Range	T_J	-55 to + 150	°C
Storage Temperature Range	Tstg	-55 to + 150	°C
Soldering Temperature, t max = 10s	T_L	260	°C

NOTE:	1. Non-repetitive current pulse 8/20 µs exponentially decaying waveform.
	2. Measured from any of pins 1, 3, 4, 5 or 6 to pin 2.

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter	Symbol	Conditions	Min	Max	Unit
Reverse standoff voltage	V_DRM	—	—	5.0	V
Reverse leakage current	I_RM	V_DRM = 5 V	—	25	nA
Breakdown voltage	V_BR	I_R = 1 mA	6.4	7.2	V
Diode capacitance	C_J	V_R = 0 V, f = 1MHz	—	19	pF
Clamping voltage	V_CL	I_PP = 1A	—	10	V
Clamping voltage	V_CL	I_PP = 2.5A	—	12	V

SOT563

Dim.	Min.	Max.
A	0.50	0.60
B	1.50	1.70
C	1.10	1.30
D	1.00 (Typ.)
E	0.50 (Typ.)
F	1.50	1.70
G	0.17	0.27
All dimensions in millimeters

Pin Assignment
1	Cathode 1
2	Common Anode
3	Cathode 2
4	Cathode 3
5	Cathode 4
6	Cathode 5

Marking & Orientation

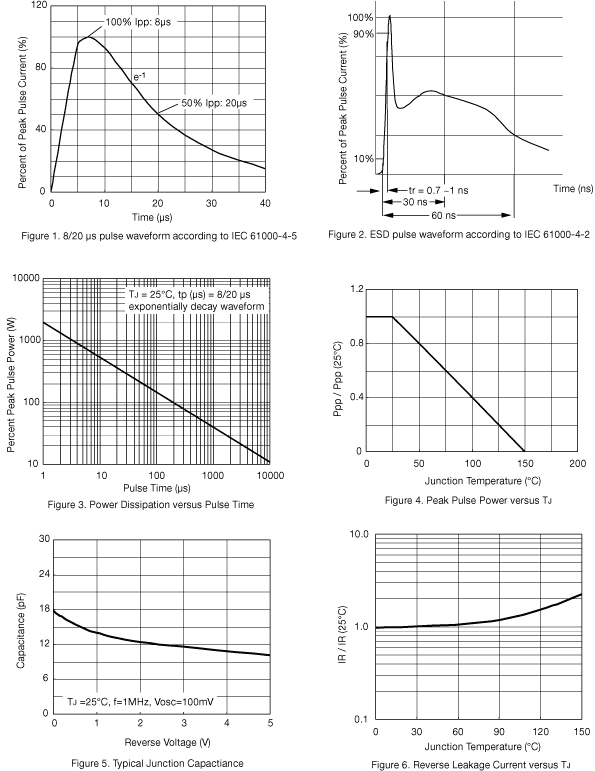

Rating and Characteristic Curves

W02E5V0F6Curves1

W02E5V0F6Curves2
