ESD Protection Diodes L13ESD5V0CB2-0

Low Capacitance Bi-Directional ESD Protection Diodes

  • Stand-Off Voltage - 5.0 Volts
  • Power Dissipation - 130 Watts

General Description

Low capacitance Electro Static Discharge (ESD) protection diodes in ultra small SMD Plastic packages designed to protect one signal line from the damage caused by ESD and other transients.

Features

  • Bidirectional ESD protection of one line
  • Max. peak pulse power: Ppp = 130W at tp = 8/20 µs
  • Low clamping voltage: VCL = 14V
  • Ultra low leakage current: IRM < 50nA
  • ESD protection > 25KV per MIL-STD-883C, Method 3015-6: Class 3 (Measured from pin 1 to pin 2)
  • IEC 61000-4-2, level 4 (ESD), >15KV (air); >8KV (contact)
  • IEC 61000-4-5 (surge); Ipp = 12A at tp = 8/20 µs
  • Ultra small SMD plastic packages

Application

  • Computers and peripherals
  • Communication system
  • Audio and video equipment
  • Portable electronics
  • Cellular handsets and accessories

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)
  • Component in accordance to RoHs 2002/95/EC

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power ( 8/20µs Waveform, Note 1)
PPPM
130
W
Peak Pulse Current ( 8/20µs Waveform, Note 1)
IPP
12
A
Operating Junction Temperature Range
TJ
-55 to + 150
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C

NOTE: 1. Measured from pin 1 to pin 2

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5
V
Reverse leakage current
IRM
VDRM = 5 V
—
0.1
µA
Breakdown voltage
VBR
IR = 5 mA
5.5
9.5
V
Diode capacitance
CJ
VR = 0 V, f = 1MHz
—
45
pF
Clamping voltage (Note 1)
VCL
IPP = 1 A (8/20µs)
IPP = 12 A (8/20µs)
—
—
10
14
V

NOTE: 1. Measured from pin 1 to pin 2

SOD323

W13E5V0CB2Dia
Dim.
Min.
Max.
A
0.80
1.10
B
0.25
0.40
C
0.10
0.25
D
1.60
1.80
E
1.15
1.35
F
2.30
2.70
G
0.15
0.45
H
—
0.05
I
0.15
0.25
All dimensions in millimeters

Pin Assignment
1
Cathode
2
Cathode

Marking & Orientation
W13E5V0CB2Marking

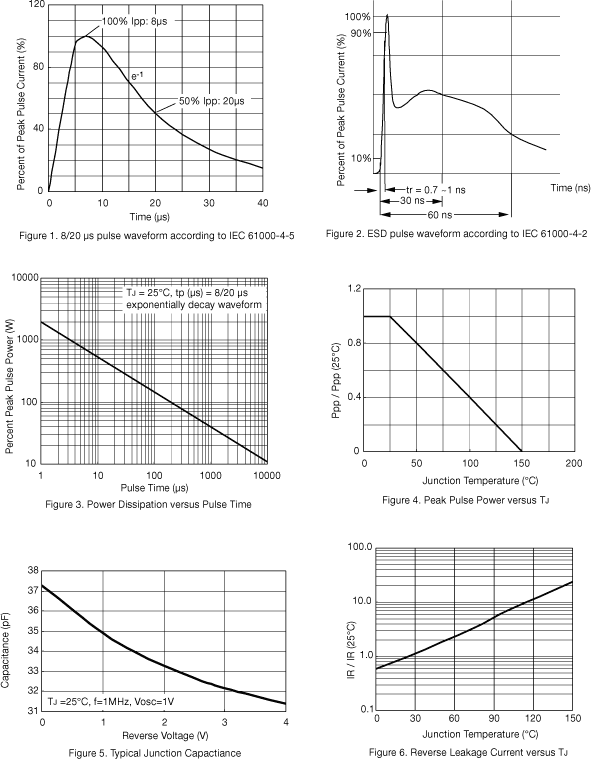

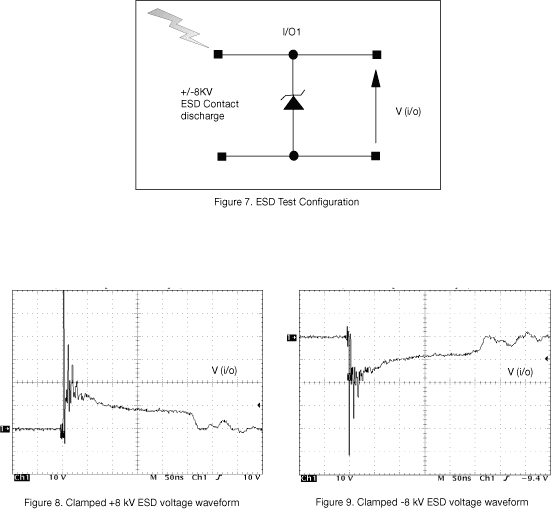

Rating and Characteristic Curves

W13E5V0CB2Curves1

W13E5V0CB2Curves2

© Specifications mentioned in this publication are subject to change without notice.
