ESD Protection Diodes L13ESD5V0CE2-0

Bi-Directional ESD Protection Diode

  • Stand-Off Voltage - 5.0 Volts
  • Power Dissipation - 130 Watts

General Description

The L13ESD5V0CE2-0 is designed to protect sensitive electronics from damage or latch up due to ESD, lightning, and other voltage induced transient events. The device will protect one line operating at 5.0 volts.

Features

  • Bi-directional ESD Protection of one line
  • Max. peak pulse power: Ppp = 130W at tp = 8/20 µs
  • Low clamping voltage
  • Low leakage current: IRM < 100nA
  • Low capacitance (25pF typical)
  • IEC 61000-4-2, level 4 (ESD), > 15KV (air); > 8KV (contact)
  • IEC 61000-4-5, level 1 (surge); Ipp = 12A at tp = 8/20 µs

Application

  • Computers and peripherals
  • Communication system
  • Audio and video equipment
  • Portable lnstrumentation

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)
  • Component in accordance to RoHs 2002/95/EC
  • Weight: 0.007 ounces, 0.21 gram

Maximum Ratings (Tj= 25 °C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power (8/20µs Waveform)
PPPM
130
W
Peak Pulse Current (8/20µs Waveform)
IPP
12
A
Operating Junction Temperature Range
TJ
-55 to + 150
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5.0
V
Reverse leakage current
IRM
VDRM = 5 V
—
100
nA
Breakdown voltage
VBR
R = 1 mA
5.5
9.5
V
Junction capacitance (Each l/O pin and ground)
CJ
VR = 0 V, f = 1MHz
—
45
pF
Clamping voltage
VCL
IPP = 1 A (8/20µs)
—
10
V
Clamping voltage
VCL
IPP = 12 A (8/20µs)
—
14
V

SOD-882

W13E5V0CE2Dia
Dim.
Min.
Max.
A
0.95
1.07
B
0.55
0.68
C
0.45
0.55
D
0.20
0.30
G
0.47
0.53
H
0.00
0.05
N
0.40 (Typ.)
R
0.05
0.15
All dimensions in millimeters

Pin Assignment
1
Cathode 1
2
Cathode 2

Marking & Orientation
W13E5V0CE2Marking

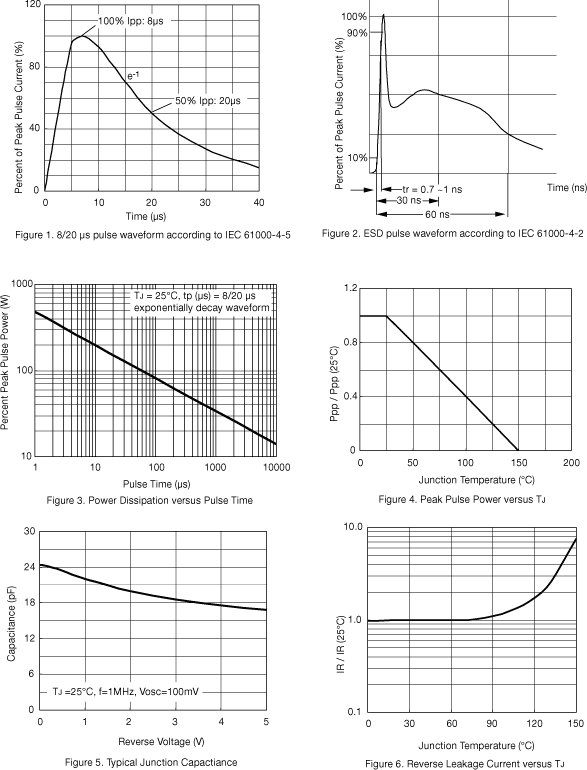

Rating and Characteristic Curves

W13E5V0CE2Curves1

W13E5V0CE2Curves2
