ESD Protection Diodes L18ESD5V0C3-2

Dual ESD Protection Diodes

  • Stand-Off Voltage - 5 Volts
  • Power Dissipation - 180 Watts

General Description

The L18ESD5V0C3-2 is a dual voltage suppressor designed to protect components which are connected to data and transmission lines against Electro Static Discharge (ESD.

It clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients.

It can work as bidirectional suppressor by connecting only pin 1 to 2.

Features

  • 2 Unidirectional ESD protection
  • Max. peak pulse power: Ppp = 180W at tp = 8/20 µs
  • Ultra low leakage current: IRM < 1µA @ VBR
  • ESD protection > 25KV per MIL-STD-883C, Method 3015-6: Class 3
  • IEC 61000-4-2, level 4 (ESD),>15KV (air) ; >8KV (contact)
  • Ultra small SMD plastic packages

Application

  • Computers and peripherals
  • Communication system
  • Portable electronics
  • Cellular handsets and accessories

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)
  • Component in accordance to RoHs 2002/95/EC

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power (8/20µs Waveform)
PPPM
180
W
Operating Junction Temperature Range
TJ
-55 to + 125
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5
V
Reverse leakage current
IRM
VDRM = 5V
—
1
µA
Breakdown voltage
VBR
IR = 1 mA
6.4
7.2
V
Diode capacitance
CJ
VR = 0 V, f = 1MHz
—
140
pF
Clamping Voltage
VCL
IPP = 12 A
—
15
V
Forward voltage drop
VF
IF = 200 mA
1.25
V

SOT23

W18E5V0C3Dia
Dim.
Min.
Max.
A
0.89
1.40
B
0.30
0.51
C
0.085
0.18
D
2.75
3.04
E
1.20
1.60
F
0.85
1.05
G
1.70
2.10
H
2.10
2.75
I
0.0
0.1
L
0.6 typ.
S
0.35
0.65
All dimensions in millimeters

Pin Assignment
1
Cathode
2
Cathode

Marking & Orientation
W18E5V0C3Marking

Rating and Characteristic Curves

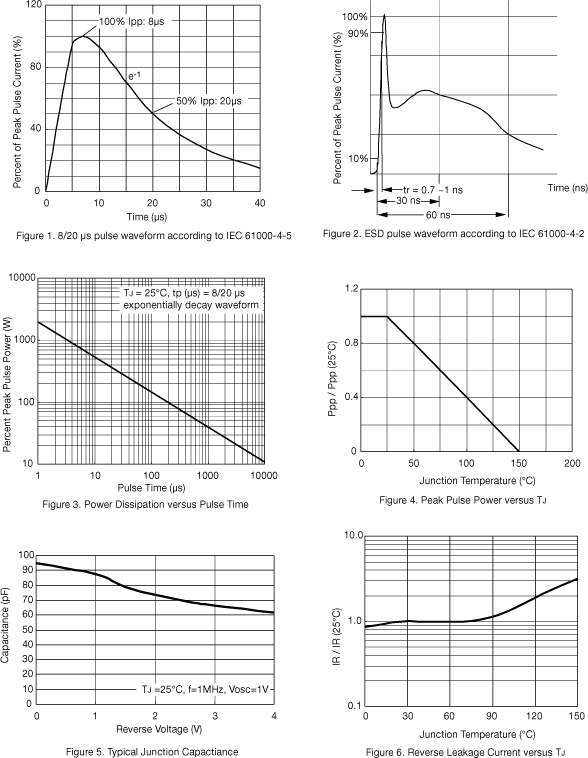

W18E5V0C3Curves1

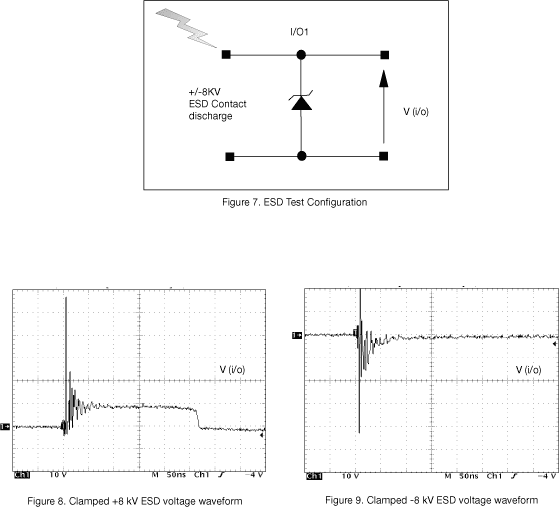

W18E5V0C3Curves2
