ESD Protection Diodes L18ESD5V0C6-4

Low Capacitance ESD Protection Diodes

  • Stand-Off Voltage - 5.0 Volts
  • Power Dissipation - 180 Watts

General Description

Monolithic transient voltage suppressor diode in a six lead SOT23-6L package for 4-bit wide ESD transient suppression.

Features

  • Protects four I/O lines
  • Max. peak pulse power: Ppp = 180W at tp = 8/20 µs
  • Low clamping voltage
  • Low leakage current: IRM < 0.7µA
  • IEC 61000-4-2, level 4 (ESD), > 15KV (air); > 8KV (contact)
  • IEC 61000-4-5, Level1 (surge); Ipp = 15A at tp = 8/20 µs

Application

  • Computers and peripherals
  • Audio and video equipment
  • Communication systems
  • Medical equipment

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)
  • Component in accordance to RoHs 2002/95/EC
  • Weight: 0.00x ounces, 0.xx gram

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power (8/20µs Waveform)
PPPM
180
W
Peak Pulse Current (8/20µs Waveform)
IPP
15
A
Peak Pulse Current (1ms Waveform)
IPP
2.66
A
Operating Junction Temperature Range
TJ
-55 to + 125
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5.0
V
Reverse leakage current
IRM
VDRM = 5.0V
—
0.7
µA
Working Voltage
VZ
IZ = 1 mA
5.89
6.51
V
Forward Voltage
VF
IF = 200 mA
—
1.3
V
Junction capacitance (Each I/O pin and ground)
CJ
VR =0 V, f = 1MHz
VR =4 V, f = 1MHz
—
200
110
pF
Clamping voltage (Any I/O to Ground)
VCL
IPP = 15 A (8/20µs)
—
12
V
Clamping voltage (Any I/O to Ground)
VCL
IPP = 2.66 A (1ms)
—
9
V

SOT23-6L

W18E5V0C6Dia
Dim.
Min.
Max.
A
0.90
1.45
B
0.90
1.30
C
0.00
0.15
D
2.80
3.00
E
2.80 typ.
F
1.50
1.75
G
1.90 typ.
H
0.95 typ.
I
1.50
3.00
J
0.08
0.22
All dimensions in millimeters

Marking & Orientation
W18E5V0C6Marking

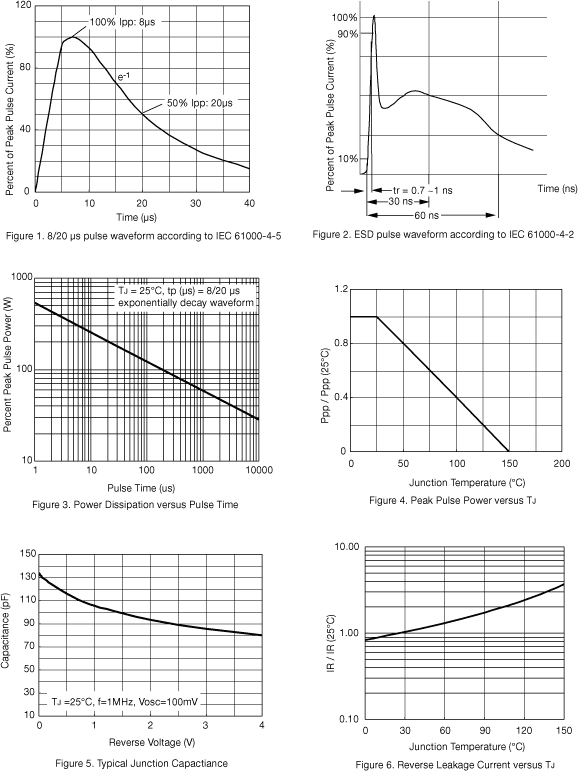

Rating and Characteristic Curves

W18E5V0C6Curves1

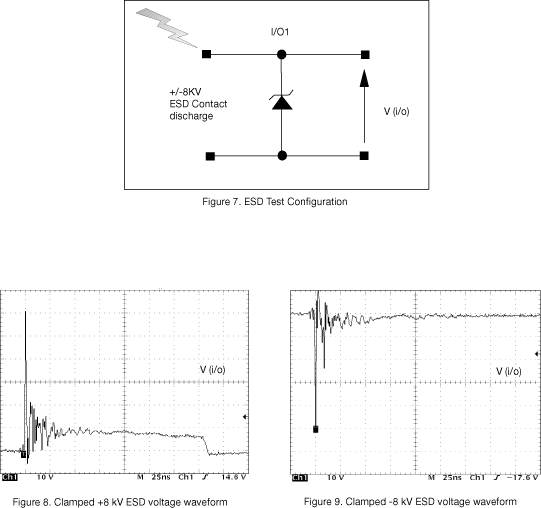

W18E5V0C6Curves2

© Specifications mentioned in this publication are subject to change without notice.
