ESD Protection Diodes L26ESD5V0A2-1

Uni-Directional ESD Protection Diode

  • Stand-Off Voltage - 5.0 Volts
  • Power Dissipation - 260 Watts

General Description

Unidirectional ESD protection in a SOD 523 plastic designed to protect one transmission or data line from the damage caused by ESD and other transients.

Features

  • Unidirectional ESD protection of one line
  • Max. peak pulse power: Ppp = 260W at tp = 8/20 µs
  • Low clamping voltage: VCL = 17V at Ipp = 15A
  • Ultra low leakage current: IRM < 700nA
  • ESD protection > 25KV per MIL-STD-883C, Method 3015-6: Class 3
  • IEC 61000-4-2, level 4 (ESD), > 15KV (air); > 8KV (contact)
  • IEC 61000-4-5 (surge); Ipp = 15A at tp = 8/20 µs

Application

  • Computers and peripherals
  • Communication system
  • Audio and video equipment
  • Data lines

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)
  • Component in accordance to RoHs 2002/95/EC

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power (8/20µs Waveform)
PPPM
260
W
Peak Pulse Current (8/20µs Waveform)
IPP
15.0
A
Operating Junction Temperature Range
TJ
-55 to + 150
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C

Electrical Characteristics (Tj= 25 °C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5
V
Reverse leakage current
IRM
VDRM = 5 V
—
1
µA
Breakdown voltage
VBR
IR = 1 mA
6.4
7.2
V
Diode capacitance
CJ
VR = 0 V, f = 1MHz
—
140
pF
Clamping voltage
VCL
IPP = 1 A ( 8/20µs )
IPP = 15 A ( 8/20µs )
—
—
9
17
V

SOD523

W26E5V0A2Dia
Dim.
Min.
Max.
A
0.58
0.65
B
0.26
0.34
C
0.11
0.17
D
1.15
1.25
E
0.75
0.85
F
1.55
1.65
All dimensions in millimeters

Pin Assignment
1
Cathode
2
Cathode

Marking & Orientation
W26E5V0A2Marking

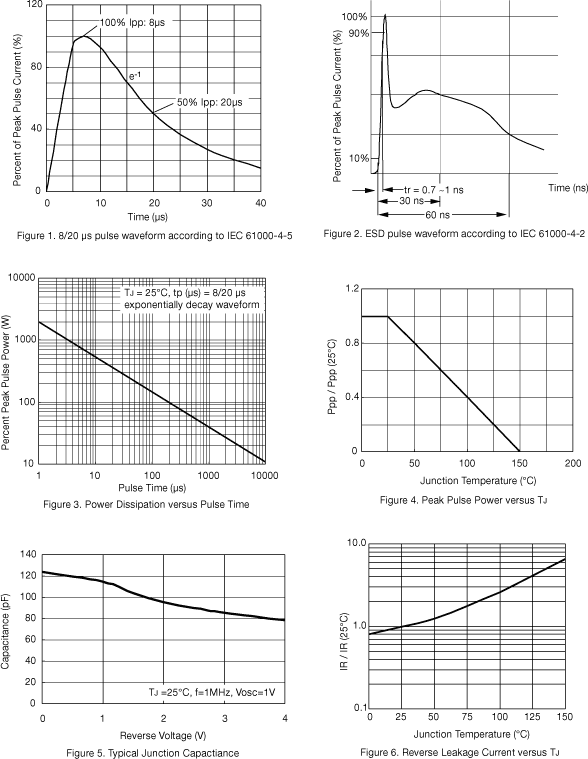

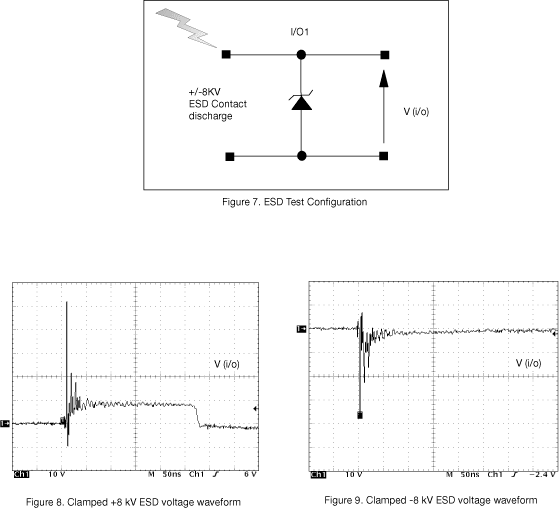

Rating and Characteristic Curves

W26E5V0A2Curves1

W26E5V0A2Curves2

© Specifications mentioned in this publication are subject to change without notice.
