ESD Protection Diodes L30ESDL5V0C3-1

Dual ESD Protection Diodes

  • Stand-Off Voltage - 5 Volts
  • Power Dissipation - 300 Watts

General Description

The L30ESDL5V0C3-1 is a dual voltage suppressor designed to protect components which are connected to data and transmission lines against Electro Static Discharge (ESD).

It clamps the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transients.

It can work as bidirectional suppressor by connecting only pin 1 to 2.

Features

  • 1 Unidirectional ESD protection
  • Max. peak pulse power: Ppp = 300W at tp = 8/20 µs
  • Ultra low leakage current: IRM < 1µA @ VBR
  • ESD protection > 25KV per MIL-STD-883C, Method 3015-6: Class 3
  • IEC 61000-4-2, level 4 (ESD), >15KV (air); >8KV (contact)
  • Ultra small SMD plastic packages

Application

  • Computers and peripherals
  • Communication system
  • Portable electronics
  • Cellular handsets and accessories

Mechanical Data

  • Case Material: “Green” molding compound UL flammability classification 94V-0 (No Br.Sb, Cl)
  • Terminals: Lead Free Plating (Matte Tin Finish)
  • Component in accordance to RoHs 2002/95/EC

Maximum Ratings (Tj= 25°C unless otherwise noticed)

Rating
Symbol
Value
Unit
Peak pulse Power (8/20µs Waveform)
PPPM
300
W
Operating Junction Temperature Range
TJ
-55 to + 125
°C
Storage Temperature Range
Tstg
-55 to + 150
°C
Soldering Temperature, t max = 10s
TL
260
°C

Electrical Characteristics (Tj= 25°C unless otherwise noticed)

Parameter
Symbol
Conditions
Min
Max
Unit
Reverse standoff voltage
VDRM
—
—
5
V
Reverse leakage current
IRM
VDRM = 5V
—
1
µA
Breakdown voltage
VBR
IR = 1 mA
Pin 1 to 2
6.4
—
V
Diode capacitance
CJ
VR = 0 V, f = 1MHz
—
5
pF
Clamping Voltage
VCL
IPP = 1A
IPP = 5A
—
—
9.8
11
V
Peak Pulse Current
IPP
Tp= 8/20 µs
17
A

SOT23

W30EL5V0C3-1Dia
Dim.
Min.
Max.
A
0.89
1.40
B
0.30
0.51
C
0.085
0.18
D
2.75
3.04
E
1.20
1.60
F
0.85
1.05
G
1.70
2.10
H
2.10
2.75
I
0.0
0.1
L
0.6 typ.
S
0.35
0.65
All dimensions in millimeters

Pin Assignment
1
Cathode
2
Cathode

Marking & Orientation
W30EL5V0C3-1Marking

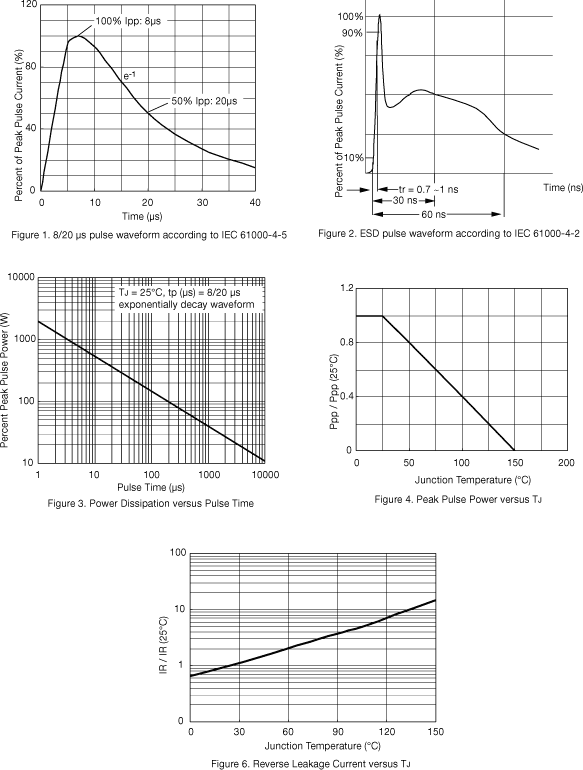

Rating and Characteristic Curves

W30EL5V0C3-1Curves1

W30EL5V0C3-1Curves2

Application Information

Low capacitance protection of one high-speed line: Protection of one unidirectional or bidirectional high-speed line is achieved by connecting two devices in anti-parallel. Pin 1 of the first device is connected to the line and pin 2 is connected to ground (or to a second line for differential protection). Pin 2 of the second device is connected to line 1 and pin 1 is connected to ground (or line 2) as shown. Pin 3 is not connected.

© Specifications mentioned in this publication are subject to change without notice.
