UHF / VHF / NFC
Whip / Stubby / Automotive
WPANT30065
Style: Stubby Antenna - Omni directional
Frequency: 411 – 425 MHz
Peak Gain: 2 dBi
Radiation Pattern: Omni Directional
DIMENSIONS: 2" (Height) x 0.5" (Dia)
Standard Connector: Screw mount
WPANT30064
Style: Stubby Antenna - Omni directional
Frequency: 409 – 427 MHz
Peak Gain: 1 dBi
Radiation Pattern: Omni Directional
DIMENSIONS: 4" (Height) x 0.3" (Dia)
Standard Connector: Screw mount
WPANTDP046
Style: Stubby Antenna -Omni directional
Frequency: 433 MHz
Peak Gain: 2 dBi
DIMENSIONS: 2" (Length)
Standard Connector: Right Angle SMA Male
WPANTDP029
Style: Stubby Antenna -Omni directional
Frequency: 153 MHz
Peak Gain: 2 dBi
DIMENSIONS: 3.1" (Length)
Standard Connector: SMA Male
WPANT30118
Style: Stubby Antenna - Omni directional
Frequency: 470 – 752 MHz
Radiation Pattern: Omni Directional
DIMENSIONS: 4.5" x 0.28" (Dia)
Standard Connector: BNC Male with swivel mechanism
WPANT30133
Style: Stubby Antenna - Omni directional
Frequency: 450 – 470 MHz
Radiation Pattern: Omni Directional
DIMENSIONS: 8.5"
Standard Connector: BNC Male with swivel mechanism
WPANTDP070
Style: Automotive, Body-Mount
Frequency: 88 – 108 MHz, 824 – 960 MHz, 1567 – 1583 MHz, 1710 – 1990 MHz
Peak Gain: 2 dBi (98 MHz), 2 dBi (900 MHz), 28 dBi (1575 MHz), 2 dBi (1850 MHz)
DIMENSIONS: 3.6" (Height) x 2.44" (Base Dia)
Standard Cable: RG174
Standard Connector: SMA Male
Different cable and connector requests can be accommodated.

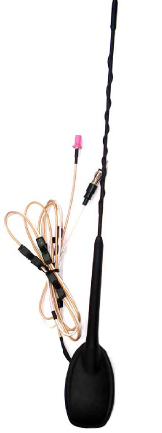

WPANTDP069
Style: Automotive, Body-Mount
Frequency: 88 – 108 MHz, 1575 – 1615 MHz
Peak Gain: 10 dBi (98 MHz), 30 dBi (1595 MHz)
DIMENSIONS: 15.1" (Length) x 1" (Base Width)
Standard Cables: RG188 (FM), RG316 (GPS)
Standard Connectors: DIN41585 (FM), FAKRA (GPS)
Different cable and connector requests can be accommodated.
WPANT30037
Style: Stubby Antenna - Omni directional
Frequency: 470 – 862 MHz
Peak Gain: 3 dBi
Radiation Pattern: Omni Directional
DIMENSIONS: 5.9"
Standard Cable: RG-174
Standard Connector: MMCX
Different cable and connector requests can be accommodated.
WPANT30036
Style: Stubby Antenna - Omni directional
Frequency: 170 – 240 MHz
Peak Gain: 3 dBi
Radiation Pattern: Omni Directional
DIMENSIONS: 16.1"
Standard Cable: RG-174
Standard Connector: SMA Male
Different cable and connector requests can be accommodated.
WPANT30068
Style: Stubby Antenna - Omni directional
Frequency: 137 – 150 MHz
Peak Gain: 2 dBi
Radiation Pattern: Omni Directional
DIMENSIONS: 17.7"
Standard Cable: RG-174
Standard Connector: SMA Male
Different cable and connector requests can be accommodated.
